Baker

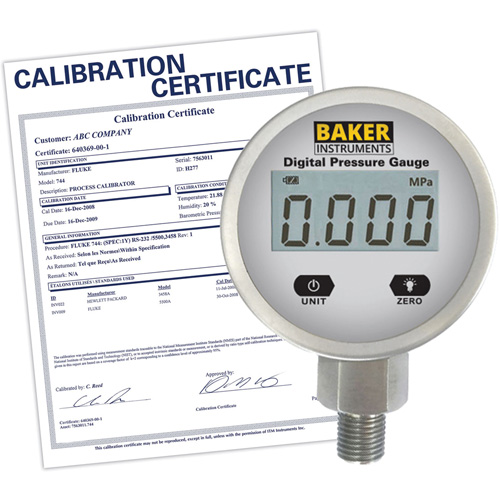

B5000 Series Pressure Gauge with ISO Certificate, 2-1/2" , 0 - 103.4 kPa/0 - 15 psi/0 - 416 in. w.c., Bottom Mount, Digital

Model: IC646

Mfr. No.: B50015-NIST

  • B5000 Series Pressure Gauge with ISO Certificate, 2-1/2" , 0 - 103.4 kPa/0 - 15 psi/0 - 416 in. w.c., Bottom Mount, Digital Rideout Tool & Machine Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Dial Diameter

2-1/2"

Pressure Range

0 - 103.4 kPa/0 - 15 psi/0 - 416 in. w.c.

Connection

Bottom Mount

Dial Type

Digital

Additional Measuring Ranges

0 - 1.055 kgf/cm², 0 - 30.5 inHg, 0 - 1034 mbar, 0 - 0.103 Mpa

Resolutions

0.01 psi, 0.001 kgf/cm², 0.1 inHg, 0.1 kPa, 1 in. w.c., 1 mbar, 0.001 Mpa

Accuracy

1% F.S.

Long-Term Stability

0.5% F.S./Year

Sampling Rate

3x/Sec.

Overload Capacity

150%

Process Connection

1/4" Male NPT

Display

4 Digit Backlit LCD

IP Rating

IP64

  • This digital pressure gauge with integral bar graph features 1% accuracy, backlighting for easy reading, and up to 7 selectable engineering units, allowing one gauge to be used in a variety of pressure applications
  • Displays real-time pressure with short response times and excellent long-term stability
  • The all stainless steel wetted parts make this gauge suitable for a wide variety of industrial liquids and gaseous mediums
  • Compatible with air, liquids, and gases
  • 4-digit LCD display with backlight provides clear readings
  • Push-button zero
  • Includes: (2) AAA batteries, (1) ISO certificate
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
