FTI Finish Thompson Inc.

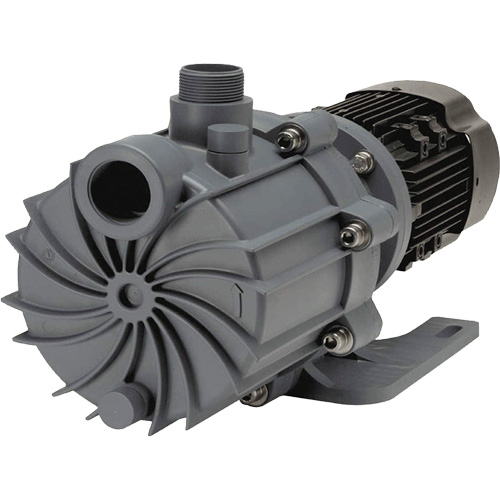

Self-Priming Magnetic Drive Pump with Carbon Bushing

Model: PUN318

Mfr. No.: SP15V-M209

  • Self-Priming Magnetic Drive Pump with Carbon Bushing Rideout Tool & Machine Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • 5 Years

Intake Size

1-1/2"

Discharge Port Size

1-1/2"

Motor

3 HP

Suction Head

90'

Connection Type

NPT

Impeller Size

5.125"

Magnet Type

8-Pole

Material

PVDF

Max. Flow

120 GPM

Max. Operating Temperature

220°F (104°C)

Max. Pressure

90 PSI

Power

208-230-460 V, 60 Hz

Country Of Origin

United States

  • Self-priming, magnetic drive
  • Provides up to 25 ft. (7.6 m) lift or equivalent
  • Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
  • Retains fluid for re-priming when shut off without a check valve
  • Extended run dry ability (with carbon bushing)
  • High operating efficiency
  • PVDF construction
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded (NPT or BSP), union or flange connections
  • Back pullout design
  • Mounts to NEMA and (B5 & B14) IEC motor frames
  • Easy set measurement free drive
  • ISO 1940 G2.5 balancing
  • CE certified
  • High working pressure up to 80 psi (5.5 bar)
  • Specific gravity over 1.8
