King Canada

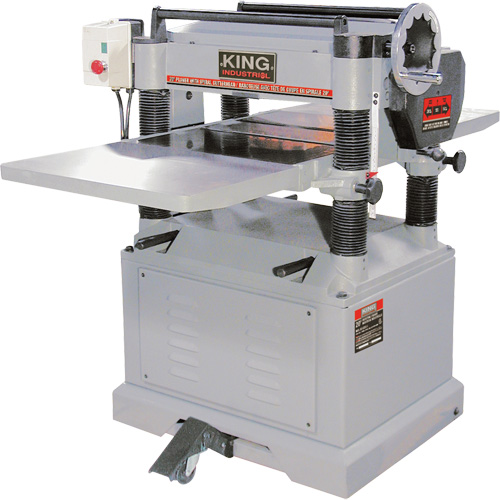

Planer with Spiral Cutterhead, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed

Model: UAK064

Mfr. No.: KC-526FX

  • Planer with Spiral Cutterhead, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed Rideout Tool & Machine Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Overall Width

56-1/2"

Overall Length

40"

Overall Height

42"

No Load Speed

5000 RPM

Max. Planing Thickness

8"

Max. Depth Of Cut

3/32"

Total Surface Of Work Table

56-1/2" x 20"

Cutterhead Diameter

3.15"

Number Of Knives

98 (14 x 14 x 2 mm)

Feed Rate

2 (16-20) FPM

Number Of Cuts/Inch

104-83

Motor

19 Amps

Voltage

220 V, 1 Phase, 60 Hz

  • Powerful 5 HP motor
  • Solid cast-iron extension tables
  • Mobile base system built into cabinet
  • A spiral cutterhead is 50% quieter than a conventional cutterhead
  • Table raises and lowers on four precision ground columns
  • Anti-kickback fingers in front of the infeed roller prevents wood kickback
  • Magnetic safety switch
  • Includes: Knife setting gauge, 5" dust chute
